UNS N06601 W.N 2.4851 Inconel 601 Tube Inconel 601 Plate Bar

Name: UNS N06601 WN 24851 Inconel 601 Tube Inconel 601 Plate Bar
Brand: KAIXIN
Price: 1 USD

China UNS N06601 W.N 2.4851 Inconel 601 Tube Inconel 601 Plate Bar wholesale

Brand Name : KAIXIN

Model Number : KX-Alloy IN601

Certification : ISO9001:2015

Place of Origin : China

MOQ : 200KG

Price : To negotiate

Payment Terms : T/T, L/C

Supply Ability : 50~80 TONS per MONTH

Delivery Time : 45~60days

Packaging Details : Wooden Box, size as per guests' request

Shape : Wire,Strip,Rod,Pipe,Plate

Alloy Type : Nickel-chrome-iron Alloy

Raw Materials : NI63%,CR21-25%,Fe10-15%

Executive standard : ASTM

Delivery State : Sosoloid

Application : It is used for heat treatment equipment such as industrial furnaces, baskets, Muffle furnaces and distillation tanks, steel wire annealing tubes, petrochemical and other process equipment, burner nozzles, gas turbine equipment, superheater tube supports an

Features : Excellent corrosion resistance and oxidation resistance

Size : Negotiable

Contact Now

KX Inconel 601 Nickel Alloy Wire Round Bar Tube Steel Sheet Light Rod on Inconel Alloy

Product Description and Application

Inconel 601 is also known as UNS N06601 W.N 2.4851

Inconel 601 is nickel-chromite alloy with aluminum that has excellent oxidation resistance and other high-temperature corrosion as well as improved resistance to nitriding. It also has high mechanical properties at high temperatures, which is used in heat treatment plant for pallet, basket and fixture, exhaust system components, pipe support and soot treatment components.

Process Performance and Requirements

Product Fusion Process

Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)

Product Chemical Composition

Alloy	%	Ni	Cr	Fe	C	Mn	Si	Cu	Al	P	S
Inconel 601	Min	Rem	21	10					1.0
Inconel 601	Max		25	15	0.1	1	0.5	1	1.7	0.03	0.015

Product Physical Property

Density	8.1 g/cm3
Melting Point	1320-1370℃

Product Mechanical Property

Alloy State

Tensile strength

Rm N/mm2

Yield strength

RP0.2 N/mm2

Percentage Elongation

A5 %

Brinell Hardness

Annealing Treatment

650

300

Solution Treatment

600

240

≤220

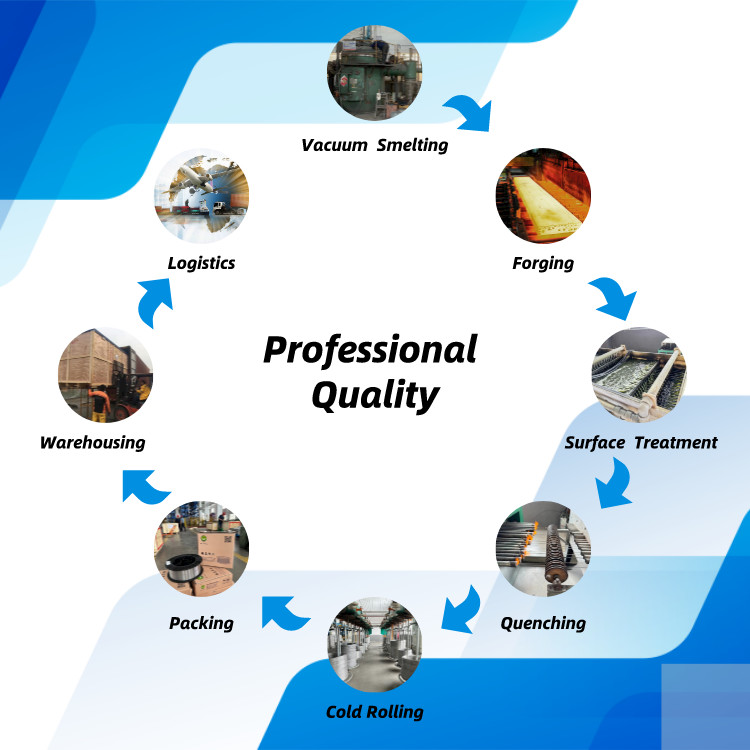

Productive Process

Professional Customization

Cold-drawn Wire	¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire	¢5.5~¢20mm(Delivery in rolls)
Strip	thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe	¢60~350mm,L800-2500mm
Hot-rolled Burnishing	¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing	¢2.5~18mm,L1000-8000mm
Seamless Tube	¢1~275mm,wall thickness 0.2~30,L1000-8000mm
