KX W.Nr.2.4669 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy

Name: KX WNr24669 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy
Brand: KAIXIN
Price: 1 USD

China KX W.Nr.2.4669 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy wholesale

Brand Name : KAIXIN

Model Number : KX-Alloyx750

Certification : ISO9001:2015

Place of Origin : China

MOQ : 200KG

Price : To negotiate

Payment Terms : T/T, L/C

Supply Ability : 50~80TONS per MONTH

Delivery Time : 45~60days

Packaging Details : Wooden Box, size as per guests request

Shape : Wire, Strip, Rod, Tube, Plate

Alloy Type : Nickel chromium iron（Ni-Cr-Fe）

Raw Materials : NI70%,CR14-17%,NB0.7-1.2%,Ti2.25-2.75%

Executive Standard : ASTM

Delivery State : Sosoloid

Application : For Aero engine, manufacture of turbine turbine blades and etc parts

Features : Corrosion resistance and oxidation resistance

Size : Negotiable

Contact Now

Product Description and Application

W.Nr.2.4669 is also known as UNS N07750,X750, GH4145

W.Nr.2.4669 has good corrosion resistance and oxidation resistance below 980℃, high strength below 800℃, good relaxation resistance below 540℃ as well as good formability and welding performance, which is used for corrosion resistant flat wave spring, circumferential spiral spring, spiral spring, spring clamp, seal ring and etc below 540℃.

Process Performance and Requirements

Product Fusion Process

Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)

Product Chemical Composition

Alloy Grade	%	Ni	Cr	Fe	Nb	Co	C	Mn	Si	S	Cu	Al	Ti
W.Nr.2.4669	Min		14	5.0	0.7							0.4	2.25
W.Nr.2.4669	Max	70	17	9.0	1.2	1.00	0.08	1.00	0.5	0.01	0.5	1.0	2.75

Product Physical Property

Density	8.28 g/cm3
Melting Point	1393-1427℃

Product Mechanical Property

Alloy

Tensile strength

Rm N/mm2

Yield strength

RP0.2N/mm2

Percentage Elongation

A5 %

Brinell hardness

Solution

Treatment

1267

868

≤400

Productive Process

KX W.Nr.2.4669 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy

Professional Customization

Cold-drawn Wire	¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire	¢5.5~¢20mm(Delivery in rolls)
Strip	thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe	¢60~350mm,L800-2500mm
Hot-rolled Burnishing	¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing	¢2.5~18mm,L1000-8000mm
Seamless Tube	¢1~275mm,wall thickness 0.2~30,L1000-8000mm

KX W.Nr.2.4669 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy

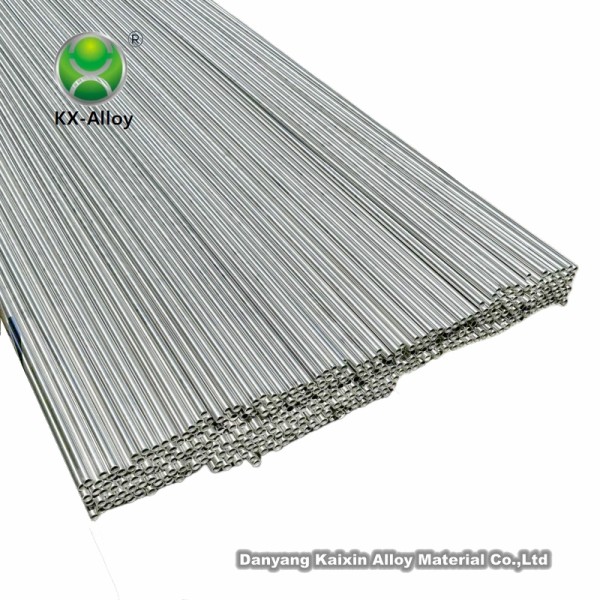

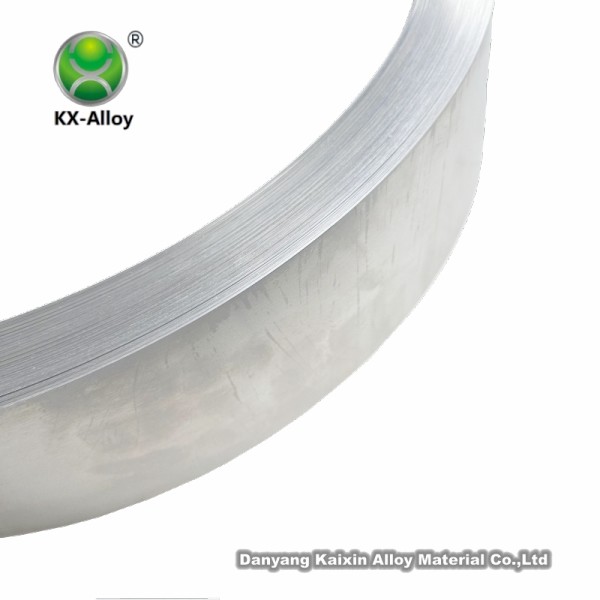

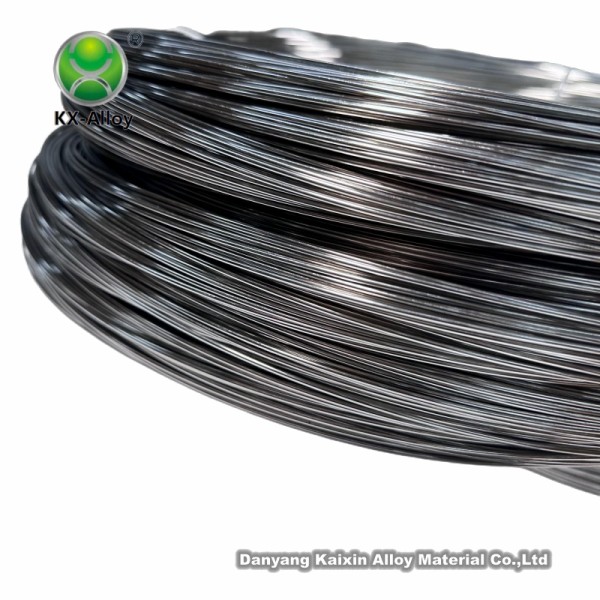

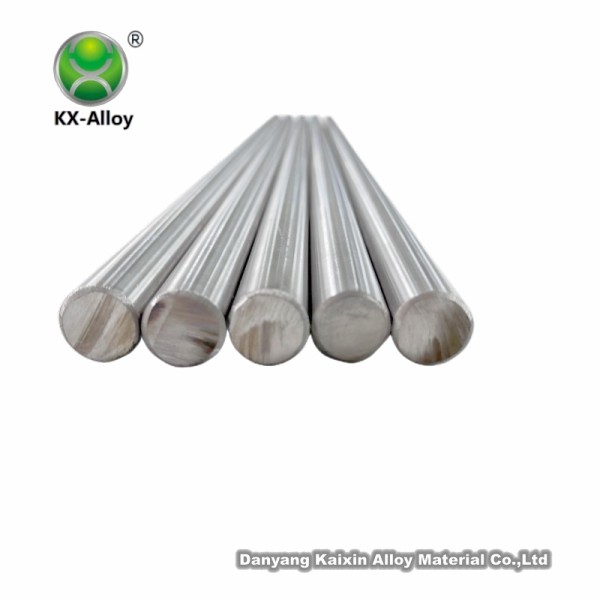

KX W.Nr.2.4669 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy Images
