Hiperco 50 Soft Magnetic Alloy ASTM Rod / Tube / Plate / Wire / Strip

Name: Hiperco 50 Soft Magnetic Alloy ASTM Rod Tube Plate Wire Strip
Brand: KAIXIN
Price: 1 USD

China Hiperco 50 Soft Magnetic Alloy ASTM Rod / Tube / Plate / Wire / Strip wholesale

Brand Name : KAIXIN

Model Number : KX-Alloy HIP22

Certification : ISO9001:2015

Place of Origin : China

MOQ : 200KG

Price : To negotiate

Payment Terms : T/T, L/C

Supply Ability : 50~80 TONS per MONTH

Delivery Time : 45~60days

Packaging Details : Wooden Box, size as per guests' request

Shape : Wire,Strip,Rod,Tube,Plate

Alloy type : Soft Magnetic Alloy

Raw Materials : NI49-51%,V 0.8-1.8%，Fe Rem

Executive standard : ASTM

Delivery State : Sosoloid

Application : Suitable for light weight and small size electrical components for aviation and aerospace applications, such as microelectronic rotor, electromagnet pole head, relay, transducer and etc.

Features : It has high saturation magnetic induction intensity, high Curie point and can maintain good magnetic stability at high temperature.

Size : Negotiable

Contact Now

KX Hiperco 50 Soft Magnetic Materials Soft Iron Light Rod On Soft Magnetic Alloy

Product Description and Application

Hiperco 50 is also known as Hiperco 50,AFK502,Supermendur, 1J22 iron cobalt alloy

Hiperco 50 has high saturation magnetic induction, which is suitable for manufacturing aircraft and instrument components requiring small volume and light weight. Among the existing soft magnetic materials, it has the highest saturation magnetic induction intensity (2.4T), the Curie point is also high (980℃) and the saturation magnetostriction coefficient (60 ~ 100×10-6) is the maximal. Because of the high saturation magnetic induction intensity, it can can greatly reduce the volume when produce the same power of the motor and can create a large suction force when making an electromagnet in the same cross-sectional area . Because of the high Curie point, the alloy can work at higher temperatures where other soft magnetic materials have been completely demagnetized and maintain good magnetic stability

Process Performance and Requirements

Product Fusion Process

Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)

Product Chemical Composition

Grade	Chemical Composition (Mass Fraction)(％)
Grade	C≤	Mn≤	Si≤	P≤	S≤	Cu≤	Ni≤	Co	V	Fe
Hiperco 50	0.04	0.3	0.3	0.02	0.02	0.2	0.5	49.0～51.0	0.80～1.80	Rem

Product Physical Property

Grade	Resistivity／(μΩ·m)	Density／(g／cm3)	Curie Point／°C	Saturation Magnetostriction Coefficient／(×10^-6)	Tensile Strength／MPa
					Cold Hard State	Soft State
Hiperco 50	0.4	8.2	980	60～100	1325	490

Product Magnetic Properties after Heat Treatment

Grade	Variety	Magnetic Induction Intensity /T≥ at Different Magnetic Field Intensities (A/m)						Coercive Force Hc／(A／m)≤
Grade	Variety	B₄₀₀	B₈₀₀	B₁₆₀₀	B₂₄₀₀	B₄₀₀₀	B₈₀₀₀	Coercive Force Hc／(A／m)≤
Hiperco 50	Cold Rolled Strip	1.6	1.8	2	2.1	2.15	2.2	128
Hiperco 50	Wire,Forging,Rolling	-	-	-	2.05	2.15	2.2	144

Productive Process

Hiperco 50 Soft Magnetic Alloy ASTM Rod / Tube / Plate / Wire / Strip

Professional Customization

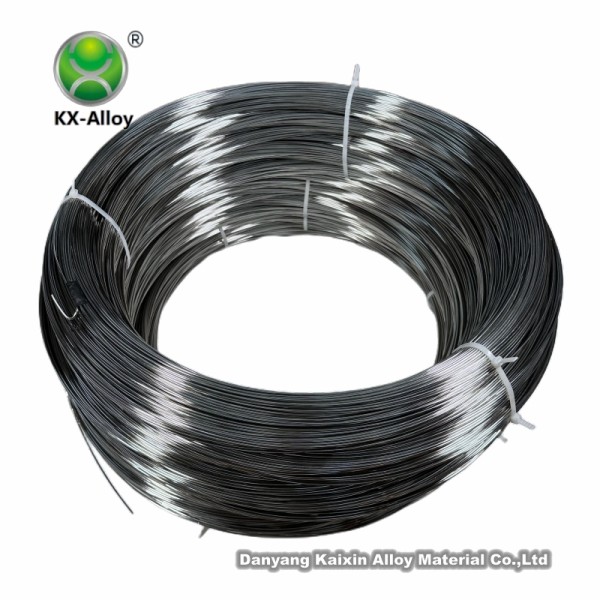

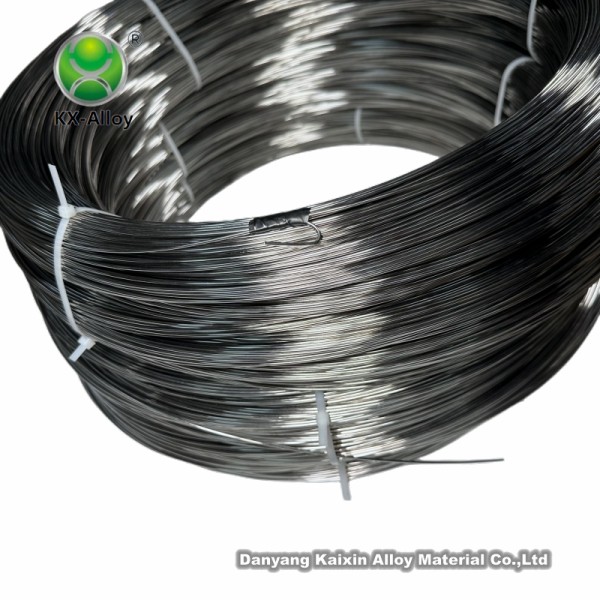

Cold-drawn Wire	¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire	¢5.5~¢20mm(Delivery in rolls)

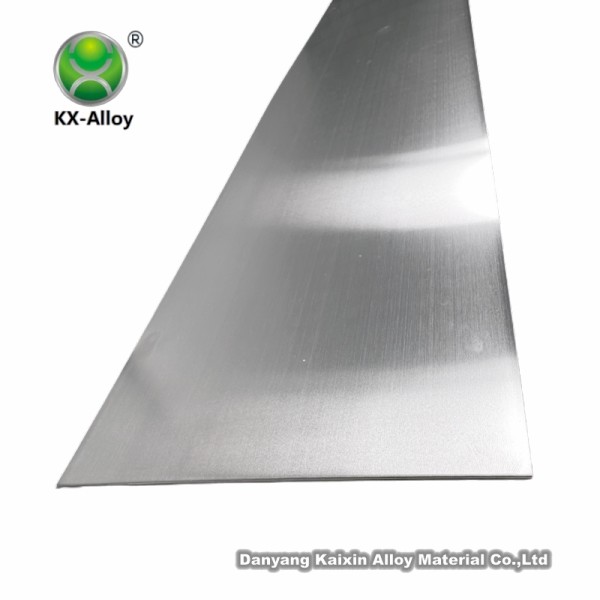

Strip	thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)

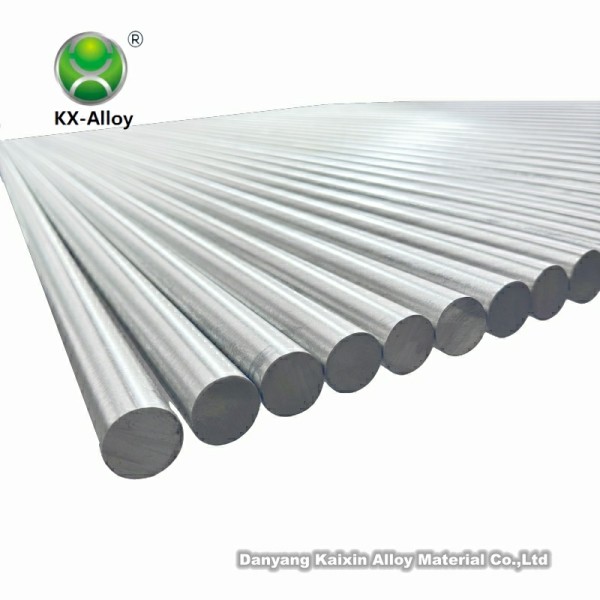

Smooth Forged Rod on a Lathe	¢60~350mm,L800-2500mm
Hot-rolled Burnishing	¢20~80mm,L1000-5000mm

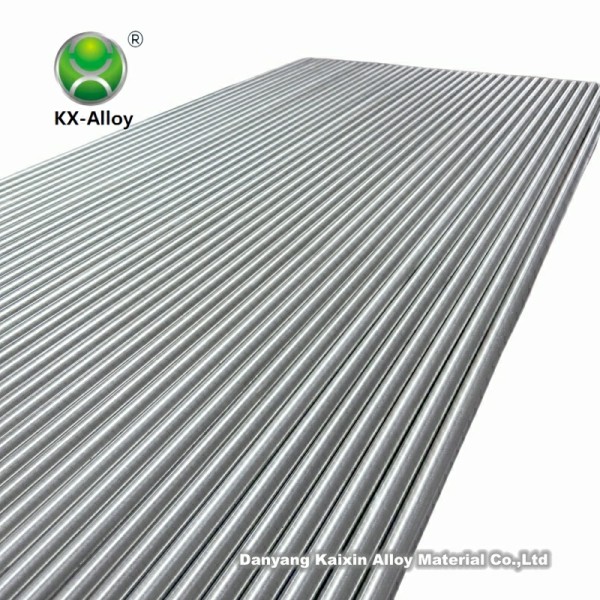

Cold Drawn and Burnishing	¢2.5~18mm,L1000-8000mm

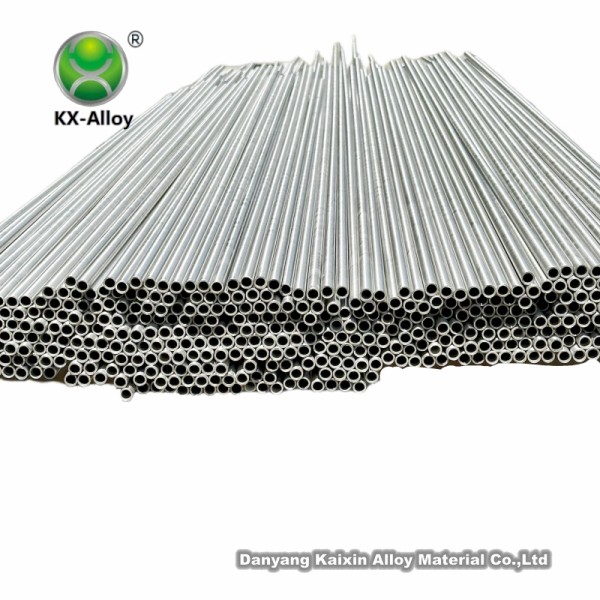

Seamless Tube	¢1~275mm,wall thickness 0.2~30,L1000-8000mm

Hiperco 50 Soft Magnetic Alloy ASTM Rod / Tube / Plate / Wire / Strip
